Eventide Voice Recording Systems (VRS) have been deployed at air traffic control centers and towers in over 50 countries. Our NexLog DX-Series recording solutions provide voice recording, archival storage, and easy access to recordings, and include redundant power supplies, a RAID1, RAID5 or RAID10 redundant hard disk array, and Linux operating system – for maximum up-time. Accurate time synchronization is provided via standard NTP or optional IRIG-B connectivity. Recorded calls may be accessed directly from the Voice Recording System’s optional front panel touch screen controls or via Eventide’s “MediaWorks DX” browser-based software.

Eventide Voice Recording Systems (VRS)

Eventide NexLog DX-Series Voice Recording Systems (VRS) can be equipped to record audio from all types of ATC/ATM audio sources, as well as imagery from CWP screens:

  • Legal Recording
  • Controller Working Positions (CWP)
  • Voice Communications & Control Systems (VCCS)
  • Ground Radio Stations (GRS)
  • Ambient Audio
  • Administrative Telephones
  • Windows-based CWP screens
  • Linux-based CWP Screens

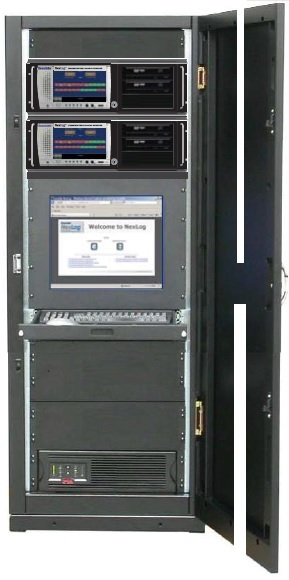

Two independent Eventide NexLog DX-Series Voice Recording Systems (VRS) may be connected in parallel, assuring fully redundant recording of each transmission.

ED137B/C-Part 4 (Next Generation VoIP Recording for ATC/ATM)

Eventide offers advanced IP-based NexLog DX-Series Voice Recording Systems (VRS) that implement the ED137B/C Part 4 recording Interface, as defined under European Organization for Civil Aviation Equipment (EUROCAE) WG67.

This capability allows Eventide NexLog DX-Series Voice Recording Systems (VRS) to interoperate with and record from ED137-capable Ground Radio Stations (GRS), Controller Working Positions (CWP), and Voice Communications & Control Systems (VCS/VCCS).

Eventide is a member of the EUROCONTROL VOTE (VoIP in ATM Implementation and Transition Expert) group, which deals with validation and deployment matters related to next generation VoIP communications used in Air Traffic Management (ATM). Eventide is also a member of EUROCAE and actively participates in EUROCAE WG 67.

Additional Information:
NexLog ED137 Application Note

Analog and Digital Recording for ATC

In addition to ED137, Eventide NexLog DX-Series Voice Recording Systems (VRS) can be equipped to record audio from other ATC/ATM audio sources, including:

  • Analog (2-wire or 4-wire) from CWP or VCCS
  • Analog from amplified microphones
  • T1 or E1 digital circuits from VCCS

Software-Based Screen Recording and Synchronized Replay

NexLog DX-Series Voice Recording Systems (VRS) can also provide software-based screen recording for Air Traffic Control centers and Airspace Navigation centers.  The NexLog DX-Series Voice Recording Systems (VRS) economical software-based screen recording option provides synchronized recording and replay of screens and audio at Controller Working Positions (CWP).  Eventide’s software-based screen recording option supports both Windows PCs and Linux PCs.

Replay Synchronization via API

Eventide offers custom API options for the development of time-synchronized VRS replay by third-party radar & air navigation providers.

Asterix Data Recording and ATG Screen Recording

Eventide and our technology partners can offer comprehensive solutions for specialized needs such as Capture, Store, and Retransmit ASTERIX data, as well as At-The-Glass (ATG) CWP recording/replay.  Please contact Eventide’s Sales Department for additional information and quotation.

Replay Synchronization with Thales TopSky

Eventide’s NexLog DX-Series Voice Recording Systems (VRS) are capable of interoperation with Thales TopSky Air Navigation System, providing synchronized replay of audio along with the controller’s working position imagery (under API control from the Air Navigation system’s scenario replay functions). Eventide’s Voice Recording Systems (VRS) have successfully passed testing at Thales Air Systems in Rungis, France for interoperability with TopSky ATC X release 3.20. Testing occurred during the week of 31 March, 2016. Tests including VRS ICD Protocol, replay search, play, pause, and resume were performed. The NexLog Voice Recording Systems (VRS) passed all interoperability tests, and was able to record and playback voice synchronized with TopSky Playback server at the Controller Working Position (CWP).

NexLog TopSky Audio Synchronization Application Note

Redundant Recording

Eventide’s NexLog DX-Series Voice Recording Systems (VRS) provide high-reliability voice recording and archival storage, and provide secure & easy access to recordings. Eventide NexLog DX-Series Voice Recording Systems (VRS) include redundant power supplies, a RAID1, RAID5 or RAID10 redundant hard disk array, and Linux operating system for maximum up-time. Two independent NexLog DX-Series Voice Recording Systems (VRS) may be connected in parallel, assuring fully redundant recording of all communications activities. Recorded calls may be accessed directly from the NexLog DX-Series Voice Recording System’s optional front panel controls or via Eventide’s “MediaWorks DX” browser-based software. NexLog DX-Series Voice Recording Systems (VRS) can be equipped to record all ATC/ATM Audio sources including ED137B-Part 4, ED137C-Part 4, T1/E1 and ISDN circuits, digital PBX telephones, VoIP telephones, SIP trunks, SIP Phones, Windows and Linux PC screen activity, and more.

NexLog DX-Series Brochure

View Eventide’s profile on Airport-Suppliers.com

Eventide’s Voice Recording Systems (VRS) are widely used by government departments and civil aviation agencies worldwide, including in the following countries:

  • Algeria
  • Angola
  • Anguilla
  • Antarctica
  • Argentina
  • Australia
  • Bahamas
  • Bangladesh
  • Barbados
  • Bolivia
  • Bonaire
  • Brazil
  • British Virgin Islands
  • Cameroon
  • Canada
  • Chile
  • Colombia
  • Congo
  • Croatia
  • Curaçao
  • Democratic Republic of Congo
  • Djibouti
  • Ecuador
  • Egypt
  • El Salvador
  • Equatorial Guinea
  • Guinea
  • Falkland Islands
  • Fiji
  • France
  • Great Britain
  • Greece
  • Guinea
  • Hungary
  • Indonesia
  • Italy
  • Jamaica
  • Jordan
  • Kenya
  • Kuwait
  • Madagascar
  • Malaysia
  • Mauritius – Rodrigues Is.
  • Mexico
  • Morocco
  • Mozambique
  • Nepal
  • Nigeria
  • Pakistan
  • Panama
  • Peru
  • Philippines
  • Poland
  • Qatar
  • St. Kitts & Nevis
  • Saint Lucia
  • Saint Vincent
  • Saudi Arabia
  • Serbia
  • Sierra Leone
  • Singapore
  • South Africa
  • Spain
  • Swaziland
  • Tanzania
  • Turks & Caicos
  • United Arab Emirates
  • United Kingdom
  • United States
  • Uruguay
  • Venezuela
  • Vietnam
  • Yemen
  • Zimbabwe

Designed, Assembled and Supported in the USA

NexLog DX-Series communications recorders and software applications are developed and maintained in the USA by Eventide’s highly-talented engineering team – assuring prompt responses to changing market needs and customer requirements. In addition, all NexLog DX-Series recorders are assembled, tested, and supported at our New Jersey USA production and support facility.
