Trusted By Customers – Worldwide
Public safety, utility, government, military, institutional, and industrial customers at thousands of sites worldwide trust Eventide’s mission-critical recording systems to reliably record and protect their most important interactions and related data. For more information about NexLog EXP-Series communications recording solutions, call Eventide at +1 (201) 641-1200 x 264, or send us an email.

The specialized NexLog EXP-Series of fixed and mobile recorders meet the needs of smaller organizations and of tactical groups that require ruggedized mobile/portable recorders. These are the ideal solutions for capturing and storing telephone, radio or intercom audio (and available metadata) at organizations that need to record 8 or fewer audio inputs.

The NexLog EXP-M Vehicular Recorder is the ideal solution for capturing and storing critical voice communications that occur in tactical situations and/or harsh environments. The NexLog EXP-M recorder has been designed for use in Mobile Police/Fire Incident Command Vehicles and Portable Incident Management Centers. This recorder is also well suited for use on Trains, Cargo Ships, Remote Shelters and Portable Carrying Cases.

The NexLog EXP Fixed-location Recorder has been designed meet the critical communications recording needs of local Police Facilities, Firehouses, Schools, Colleges, Universities, Hospitals and Manufacturers.

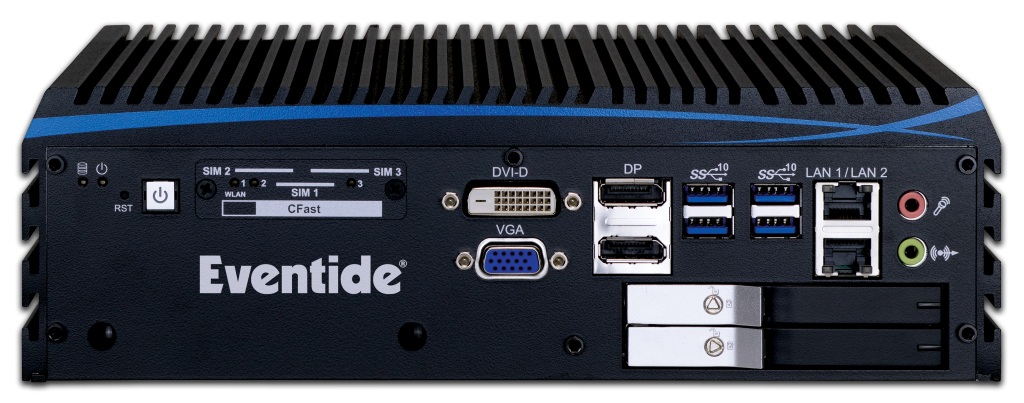

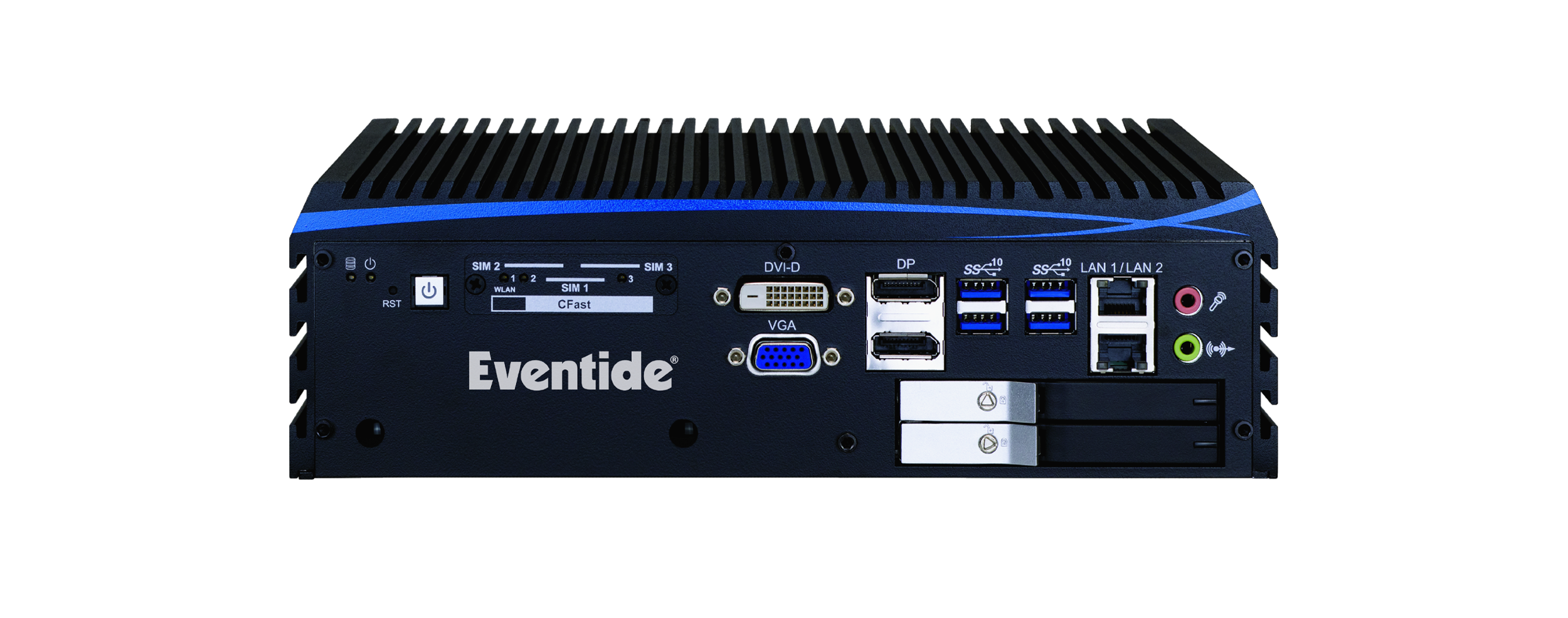

Nexlog EXP-M: Specialized Vehicular Recorder

Audio Recording Capabilities

The NexLog EXP-M recorder is designed to record from 2-wire analog sources, 4-wire analog sources, or VoIP audio sources.

Secure and Reliable

The NexLog EXP-M recorder comes with role-based security and the Linux reliability for which Eventide is well known, assuring that calls are recorded AND that the recordings are available when needed.

Simple Local (or Browser Based) User Access

The NexLog EXP-M recorder includes easy to use interfaces for audio replay, audio export and system configuration.

Hardware/Software Profile

Self-contained Linux-based mobile recorder with dual SSDs (RAID1 mirroring) for storage integrity. The internal SSDs are removable for security when powered down. The EXP-M recorder is based on Eventide’s highly reliable NexLog DX-Series enterprise recording software.

Remote Startup and Orderly Shutdowns

Configurable ignition power control for vehicular use, with power-off delay of up to 24 hours.

Automatic Archiving

Each NexLog EXP-M recorder includes a license to archive recordings to one external device, such as a USB Hard Drive, USB Flash Drive, NAS, or a NexLog DX-Series recorder at HQ.

Simple Export to USB Storage Devices

Recordings can easily be exported to an external USB Flash drive, a USB Hard Disk Drive (HDD) or a USB Solid-State Drive (SSD).

Software Update Subscription (EXPSUS)

The first 12-month period of EXPSUS coverage is included with the purchase of a NexLog EXP-M recorder. Purchase additional 12-month periods of DXSUS coverage for ongoing assured security, reliability, and supportability.

NexLog EXP-M Mobile Recorder Specifications

Size:3.11″ (H) x 10.24″ (W) x 8.46″ (D) – Rack, Shelf or VESA mountable
Expansion:1 PCIe slot for analog recording card
Storage: Dual Solid State Drives (RAID-1 mirrored), for over 80,000 hours of voice recording storage
Connectivity:Dual 10/100/1000 Ethernet LAN ports
Operating Temperature:Extreme range of -40°F to 167°F (-40°C to 75°C)
EN50155 Compliant:EN50155 compliant for Temperature, Humidity, Vibration and Impact
Power Input:+6 to +36 Volts DC (+14 VDC Typical); Surge Protected DC Input (+80V clamp)

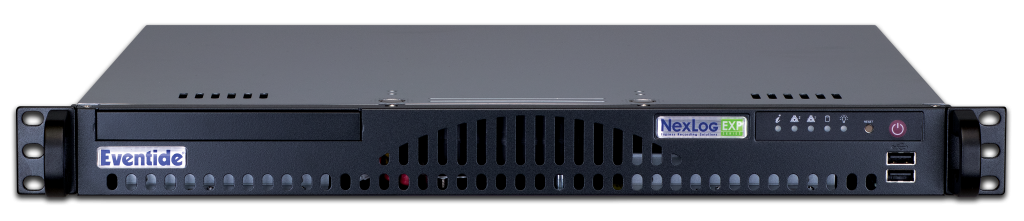

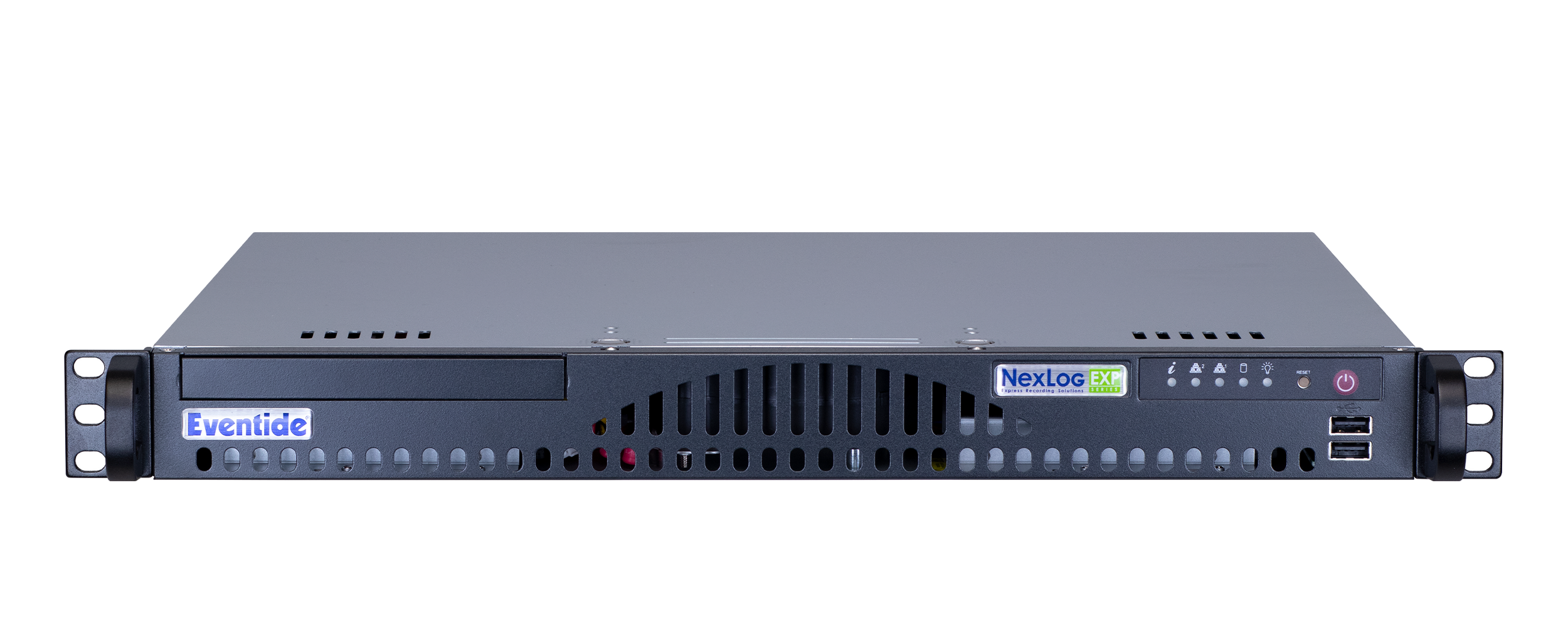

Nexlog EXP: Fixed-Location Recorder

Simple Browser-based User Access

The NexLog EXP-Series recorder supports user access from any HTML5-compatible browser with network connectivity to the recorder’s IP address or URL. The NexLog EXP-Series recorder includes Eventide’s MediaWorks-EXP software for highly intuitive searching, replay and export of recordings.

Available Enhanced Set of Replay Tools

Upgrade to the optional MediaWorks – Enhanced version and gain a full suite of replay tools, including Text/Voice Annotation, Audio Redaction, Incident Management, seven ways of sharing recordings, Metadata search and more. Add the optional MediaWorks Mobile software option for smartphone access to recordings.

This image has an empty alt attribute; its file name is EXP-Basic-Interface-GUI-20April2021-Final-1024x501.png

Secure and Reliable

The NexLog EXP-Series recorder comes with role-based security and the Linux reliability for which Eventide is well known, assuring that calls are recorded AND that the recordings will be available when you need them.

Hardware/Software Profile

Self-contained Linux-based 1U rack-mountable appliance with Dual SSD’s (RAID1 mirroring) for storage integrity. Based on Eventide’s highly reliable NexLog enterprise recording software.

Recording Channel Configurations

Up to 8 total recording channels. Choices: All analog channels, all digital PBX channels, all VoIP channels, combination of analog + VoIP channels, or combination of digital PBX + VoIP channels.

Management and Monitoring

Each NexLog EXP-Series recorder comes standard with a web-based
User Interface for configuration, administration, and system
monitoring.

Automatic Archiving

Each NexLog EXP-Series recorder includes an Archiving license to continuously transfer recordings to one external USB Hard Drive or USB Thumb Drive, or to one Network Attached Storage (NAS) device.

Software Update Subscription (EXPSUS)

The first 12-month period of EXPSUS coverage is included with purchase of a NexLog EXP-Series recorder. Purchase additional 12-month periods of DXSUS coverage for ongoing assured security, reliability, and supportability.


Compatibility

The NexLog EXP-Series recorder is designed to record analog, digital PBX, and/or VoIP phone inputs from telephone systems.  The NexLog EXP-Series recorder also supports recording of select radio consoles, select IP based DMR and NXDN radio systems and SIP-based intercom systems.

VoIP Protocols Supported:Passive SPAN of SIP, H.323 or Cisco SCCP. Active recording of SIP end point, Cisco Built-in-Bridge or Mitel SRC
IP-based Radio Systems Supported:Motorola Solutions’ MOTOTRBO Controllerless systems, Tait DMR Tier 2, Tait DMR Tier 3, Kenwood NexEdge (NXDN) trunked
IP Radio Consoles Supported:SmartPTT, RadioPRO, more (contact Eventide)

NexLog EXP Recorder Specifications

Size:1U short depth cabinet; rack or shelf mountable
Dimensions:14.5″ (D) x 19″ (W) x 1.75″ (H)
Expansion:1 PCIe expansion slot for optional analog or digital PBX recording interface board
Processor:Intel 4-core CPU
Storage:Dual Solid State Drives (RAID-1 mirrored); over 80,000 hours of voice recording storage
Connectivity:Dual 10/100/1000 Ethernet LAN ports
Power Supply:100/240VAC, 50/60Hz, 3/1.5A Max

Designed, Assembled and Supported in the USA

NexLog DX-Series communications recorders and software applications are developed and maintained in the USA by Eventide’s highly-talented engineering team – assuring prompt responses to changing market needs and customer requirements. In addition, all NexLog DX-Series recorders are assembled, tested, and supported at our New Jersey USA production and support facility.
